The guide adjustment projection device is widely used in the metallurgical industry, mainly for adjusting the guide of high-speed wire production lines. The projection device projects the image of the guide roller onto the reference template. By adjusting the guide roller, the projection of the guide roller coincides with the line on the reference template, thus playing the role of correctly adjusting the guide.
Description

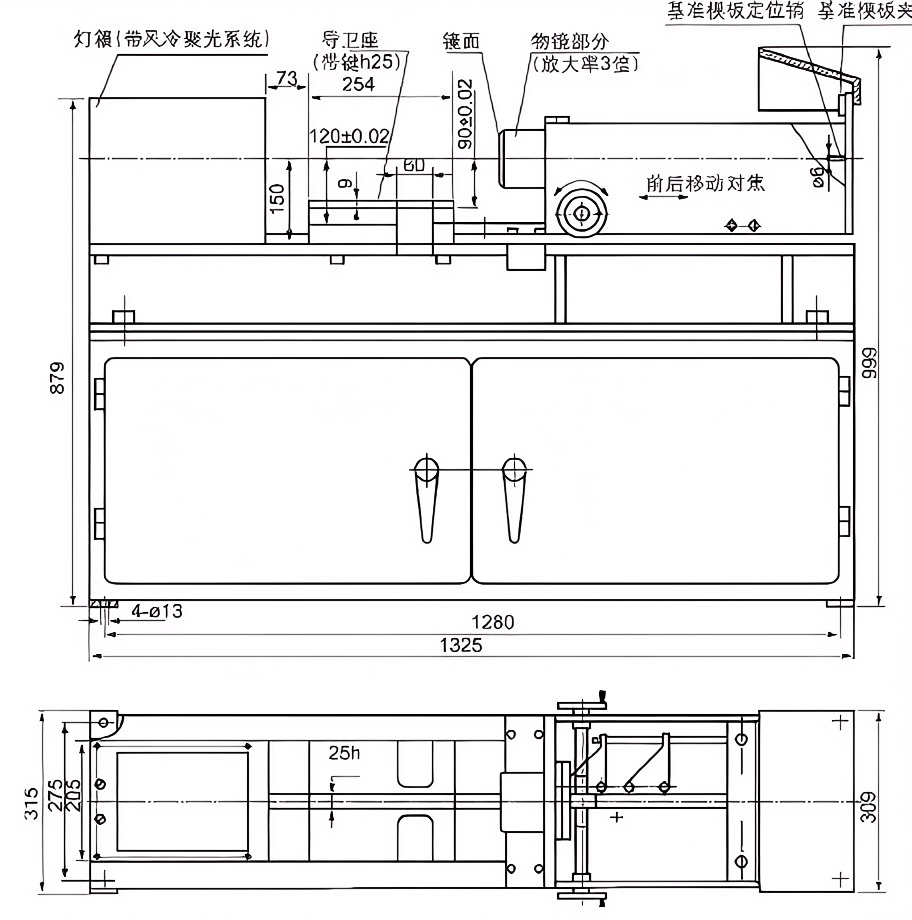

Integrated device – technical parameter（Order No.:BG-GP-1）
Power supply voltage: AC220V
Image size: Φ 180mm
Magnification of objective lens: 3 times of pre finishing rolling; Finish rolling 5 times
Surface dimension: pre finishing rolling Φ 60mm; Finish rolling Φ 36mm
Maximum size of guide hole shape: pre finishing rolling Φ 60mm; Finish rolling Φ 36mm
Height from guide base to guide Center: the user selects the center height and positioning method according to his own guide situation.
Axial distance from the guide roller center to the object mirror: pre finishing 168mm; Finish rolling 120mm
Portable– technical parameter（Order No.:BG-GP-2）
The portable guide base adjustment projection device is composed of projection imager and projection light source. It is a special instrument suitable for the adjustment of guide base of high-speed wire and bar. The optical projection system of the instrument can reflect whether the guide base is in an ideal and correct position. If the guide base is not in an ideal position, it can reflect the situation through the instrument. Online workers can directly observe and adjust the guide base on the rolling mill to make the rolling mill base accurately positioned.
Projection devices must be used with portable projection light sources.
Guide assembly drawing, hole shape drawing, guide center height, keyway form, bottom plate form, dovetail form, finish rolling or pre finish rolling shall be provided.
