Laser Detector BG-LD-C

Application and Features:
The red light laser detector is mainly suitable for the metallurgical industry, achieving automatic detection of opaque objects on production lines. This detector works
It has a long distance, strong anti-interference performance, easy installation and debugging, and can work continuously and reliably in harsh environments such as humidity, water mist, and dust for a long time. When the ambient temperature exceeds 45 ℃, the detector should be cooled with water.

The receiver has specially added a digital energy display, and the better the installation angle, the stronger the received signal energy intensity. During on-site installation, by adjusting the installation angle to the maximum received energy intensity, the installation position is ensured to be optimal and the signal surplus is maximized, avoiding the original situation of only having action instructions and not knowing whether the installation position is the best.

The transmitter can be equipped with a fault alarm output, and the receiver can be equipped with an energy alarm output. When connected to the on-site control system, maintenance reminders can be provided to prevent faults from occurring.

Technical Parameters:
Laser Type 650nm Red Laser
Laser Peak Power 50mW/100mW
Detection Mode Through-beam Type
Detection Distance 40m

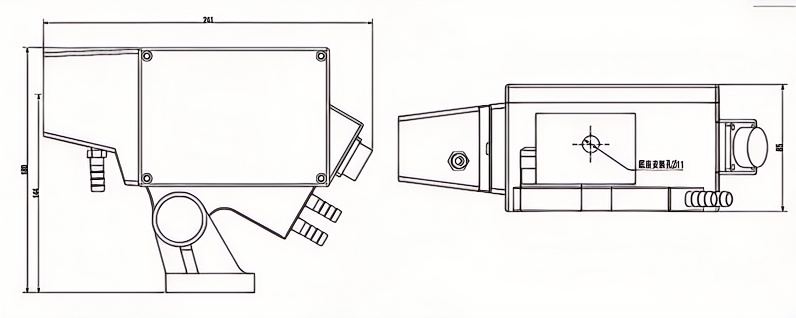

Housing Form Rectangular (Yellow), with Purging and Cooling
Operating Temperature -25°C~+45°C; -25°C~+110°C with Water Cooling
Operating Power Supply 2: AC220V (AC100V–AC275V)
4: DC24V (DC20V–DC36V)
Power Consumption <5W
Output Form Relay Output (Z) Maximum Contact Capacity: AC 250V 5A, DC 30V 5A
Push-Pull Level Output (C) With Signal: High Level ≥22V (Vin-2V) vs. ground; Low Level ≤1V vs. ground; Maximum Load Current 100mA
MOS Optocoupler Output (G) Maximum Input Operating Voltage ≤400V AC/DC, Maximum Load Current 100mA
Output Switching By switching line suspension or 0V connection, bright/dark switching achievable (i.e., normally open/normally closed, high-level output/low-level output switching)
Signal Strength Energy Indication 0–999 three-digit digital display for signal strength
Indication Dual-color indicator: Power indication: LED (green); Fault alarm: LED (red) (transmission fault, red light on). Power: LED (green), Action: LED (red), Energy alarm (energy value <50): LED (yellow) flashing
Response Time Level <2ms; MOS Optocoupler <4ms; Contact <20ms
Anti-Light Interference Incandescent Lamp 10000Lx
Air Purging Pressure 0.1MPa, Flow Rate 6L/min
Cooling Water Pressure 0.2MPa, Flow Rate 2L/min
Insulation Resistance DC500V, ≥20MΩ
Protection DC input polarity protection, level output short-circuit protection
Operating Angle Tilt angle ±60°, azimuth infinitely adjustable
Weight 2.5kg 2.5kg
