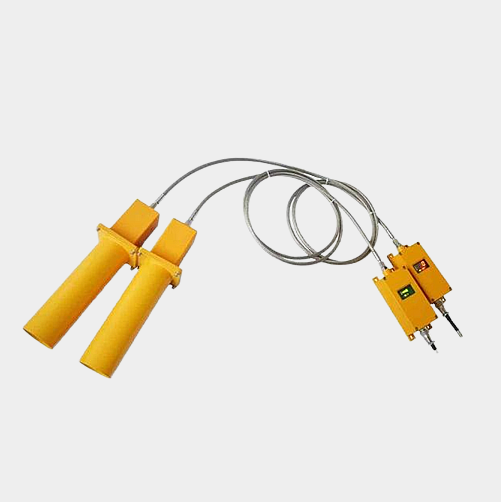

Optical fiber laser detector BG-TLD

Fiber laser detector is a new generation of high-power laser detector developed by our factory. It is especially aimed at the harsh working sites of the metallurgical industry, and uses a high-power semiconductor infrared laser tube with a laser peak power of 60W as the emission source, so it has a strong penetrating ability and a long operating distance.

Fiber laser detectors have the following characteristics:

1. It can work in harsh environments (such as high temperature, humidity, water mist, dust and other harsh environments).

2. It can work continuously and reliably for a long time.

3. The detector separates the optical unit and the control unit, and the optical unit can be installed in high temperature and harsh environments.

























Technical parameters:

1. Detection area (distance between transmission and reception): ≤ 100m；

2. Emission light source: Infrared semiconductor laser with a wavelength of 905nm;

3. Peak power of transmission output: 60W;

4. Laser safety level: CLASS IIIb；

5. Output:

L transmitter: When the transmitter is working normally, the relay is disconnected; When the transmitter is working abnormally, the relay closes. Maximum load capacity DC30V/10A, 250VAC/10A

Receiver: A set of push-pull level outputs with a maximum load capacity of 100mA, equipped with overload protection and short circuit protection. The output polarity can be switched through an internal toggle switch with a response time of 10ms.

A set of relay outputs: response time of 20ms, maximum load capacity of DC30V/10A, 250VAC/10A

Optional energy receiving alarm output: MOS relay output, maximum load capacity DC60V/2.5A. When the received energy is ≤ 20, the MOS relay closes

6. Environmental temperature range:- 25℃~70℃

7. Optical unit:- 25℃~200℃

8. Power consumption: transmitter 5W; Receiver no-load power consumption 5W, full load power consumption 15W

9. Anti environmental light drying: 10000LUX, suitable for detecting objects below 1200 ℃.
