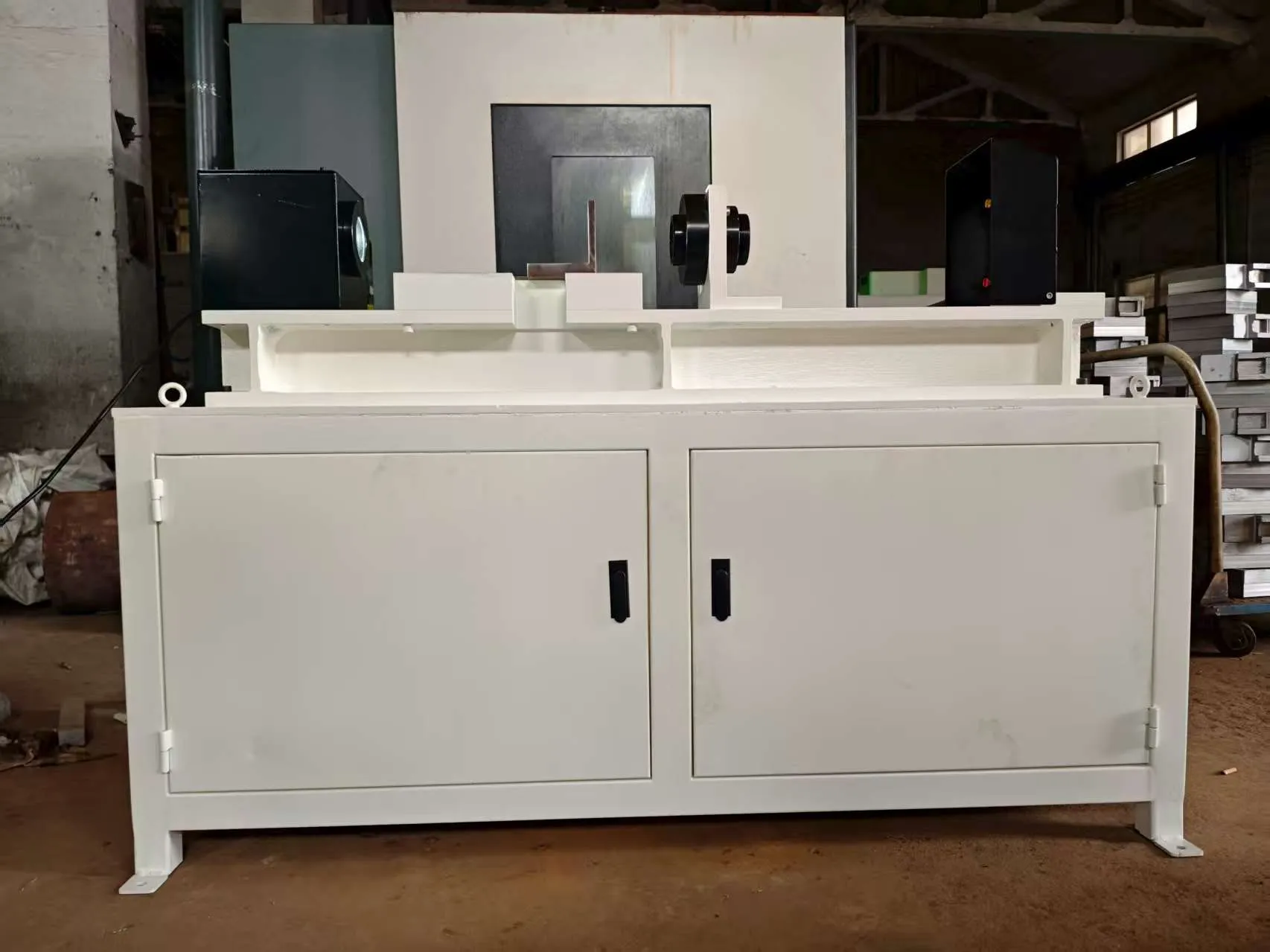

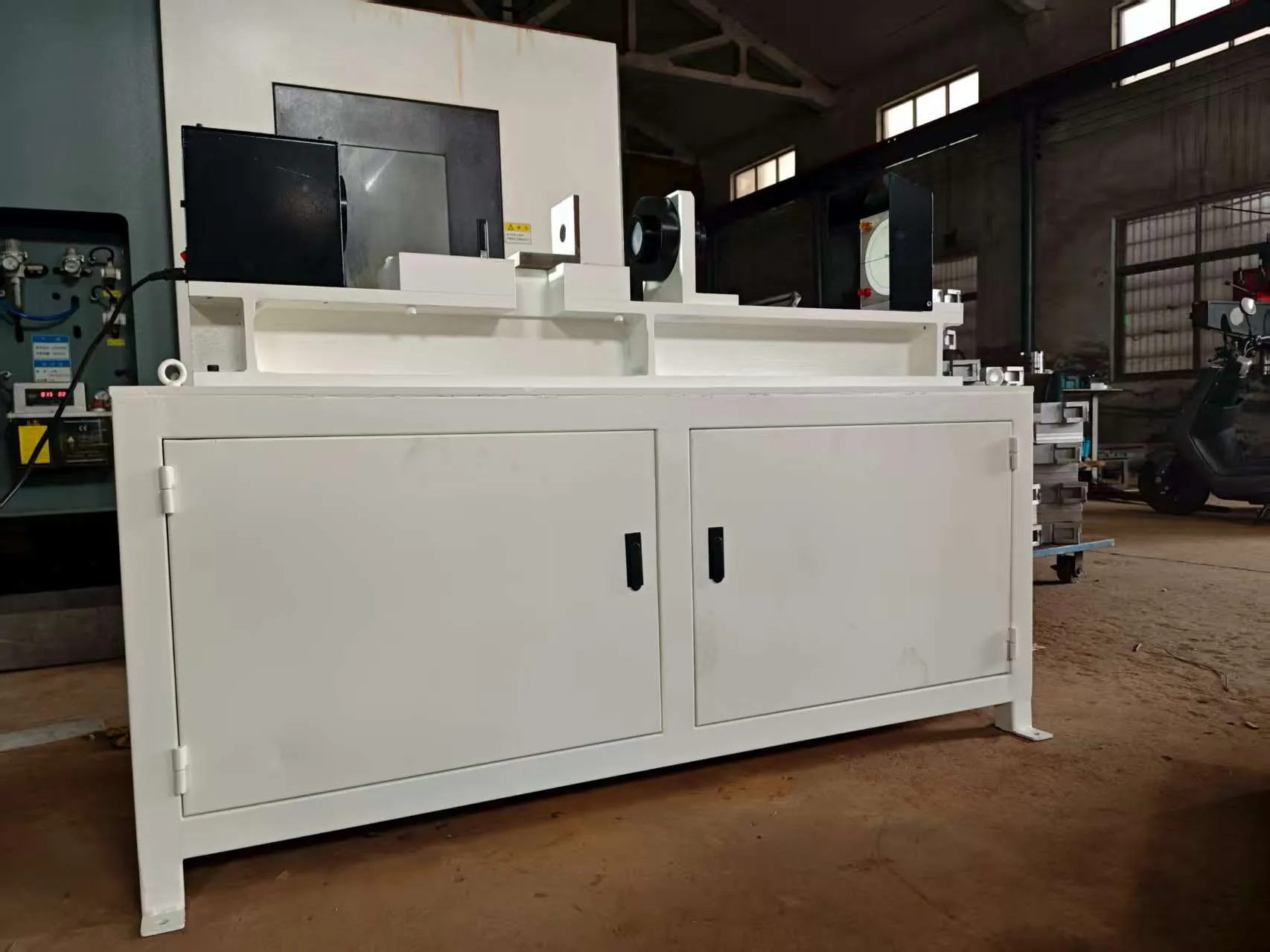

BG-DP Guide projector
The guide adjustment projection device is widely used in the metallurgical industry, mainly for adjusting the guide of high-speed wire production lines. The projection device projects the image of the guide roller onto the reference template. By adjusting the guide roller, the projection of the guide roller coincides with the line on the reference template, thus playing the role of correctly adjusting the guide.
If you need this product, click to consult!
Product Details
Product Details
The guide adjustment projection device is widely used in the metallurgical industry, mainly for adjusting the guide of high-speed wire production lines. The projection device projects the image of the guide roller onto the reference template. By adjusting the guide roller, the projection of the guide roller coincides with the line on the reference template, thus playing the role of correctly adjusting the guide.
Description
Integrated device – technical parameter（Order No.:BG-GP-1）
Power supply voltage: AC220V
Image size: Φ 180mm
Magnification of objective lens: 3 times of pre finishing rolling; Finish rolling 5 times
Surface dimension: pre finishing rolling Φ 60mm; Finish rolling Φ 36mm
Maximum size of guide hole shape: pre finishing rolling Φ 60mm; Finish rolling Φ 36mm
Height from guide base to guide Center: the user selects the center height and positioning method according to his own guide situation.
Axial distance from the guide roller center to the object mirror: pre finishing 168mm; Finish rolling 120mm
